ASUSPCs/Workstations

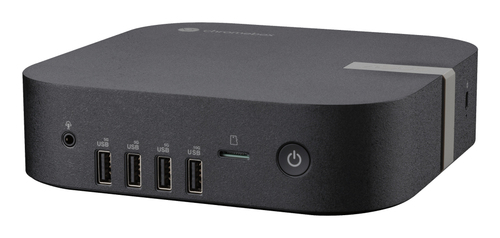

Chromebox 5a with Intel Celeron 7305 Processor, 4GB DDR4 RAM, 128GB M.2 PCIe G4x4 NVMe SSD, Quad
- Mini PC Black 65 W
- Intel® Celeron® 7305 Processor cores: 5
- 4 GB DDR4-SDRAM
- 128 GB SSD Card reader integrated
- Intel® UHD Graphics
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 6E (802.11ax) Bluetooth 5.2
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
- ASUS Chromebox 5a features the power of 13th Generation Intel® Core™ or Celeron® processors.
- Dual HDMI, DisplayPort and USB-C® 3.2 Gen 2 ports support up to four 4K displays.
- Intel® WiFi 6E provide ultrafast network speeds.
- Automatic software and security updates protect the system from viruses, malware and other security issues.
- Built-in Google Play support enables access to a rich selection of Android apps for productivity.
01
- Supports zero-touch enrollment
- Lockable VESA mount securely attaches to surfaces and offers expanded usage scenarios.
Specifications
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel® Celeron®
- Processor model
- 7305
- Processor cores
- 5
- Processor threads
- 5
- Performance cores
- 1
- Efficient cores
- 4
- Processor cache
- 8 MB
- Processor cache type
- Smart Cache
Memory
- Internal memory
- 4 GB
- Maximum internal memory
- 16 GB
- Internal memory type
- DDR4-SDRAM
- Memory slots
- 2x SO-DIMM
Storage
- Total storage capacity
- 128 GB
- Storage media
- SSD
- Optical drive type
- No
- Total SSDs capacity
- 512 GB
- SSD interface
- PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
- M.2 SSD size
- 2280 (22 x 80 mm)
- Card reader integrated
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
Graphics
- On-board graphics card
- Yes
- On-board graphics card model
- Intel® UHD Graphics
Performance
- Product type
- Mini PC
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- WLAN controller manufacturer
- Intel
- Bluetooth
- Yes
- Bluetooth version
- 5.2
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- HDMI ports quantity
- 2
- HDMI version
- 2.1
- Ethernet LAN (RJ-45) ports
- 1
- DC-in jack
- Yes
- Number of front audio ports
- 1
Power
- Power supply
- 65 W
- Power supply input voltage
- 19 V
Design
- Chassis type
- Small Desktop
- Product colour
- Black
Software
- Operating system installed
- ChromeOS
Display
- Display included
- No
Weight & dimensions
- Width
- 166.5 mm
- Depth
- 165.8 mm
- Height
- 45.9 mm
- Weight
- 800 g
Packaging content
- Cables included
- Power
- VESA mount included
- Yes
- Screws included
- Yes
- Manual
- Yes
Certificates
- Certification
- BSMI, CB, CE, FCC, UL, Energy Star, C-Tick, WiFi, RF, VCCI
Downloads
