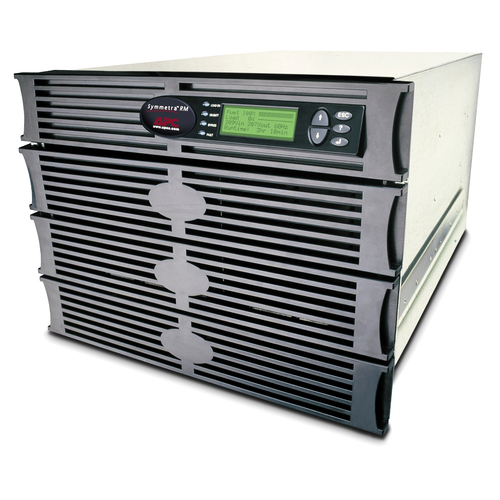

Symmetra RM 6kVA Scalable to 6kVA N+1 208/240V
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Modular design
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Configurable for N+1 internal redundancy
Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.
Redundant Intelligence Modules
Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.
Hot-swappable intelligence modules
Ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement.

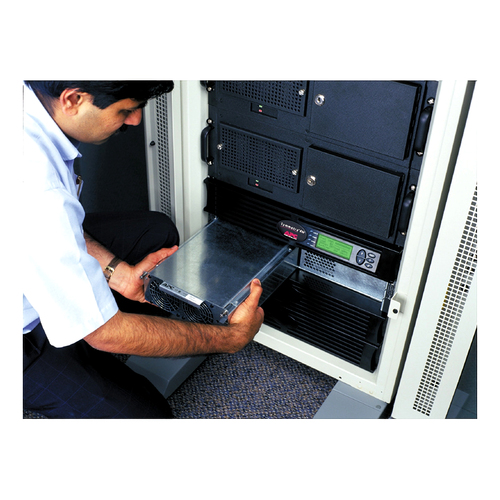

Hot-swappable power modules
Ensures clean, uninterrupted power to protected equipment during Power Module replacement.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Power Modules connected in parallel
Enhances availability by allowing immediate, seamless recovery from isolated module failures.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Automatic restart of loads after UPS shutdown
Specifications
Features
- Output power capacity
- 6 kVA
- Output power
- 4200 W
- Input frequency
- 50/60 Hz
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery recharge time
- 4 h
Design
- Cable length
- 1.83 m
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
Certificates
- Certification
- CSA,FCC Part 15 Class A,UL 1778
Weight & dimensions
- Weight
- 133.6 kg
Other features

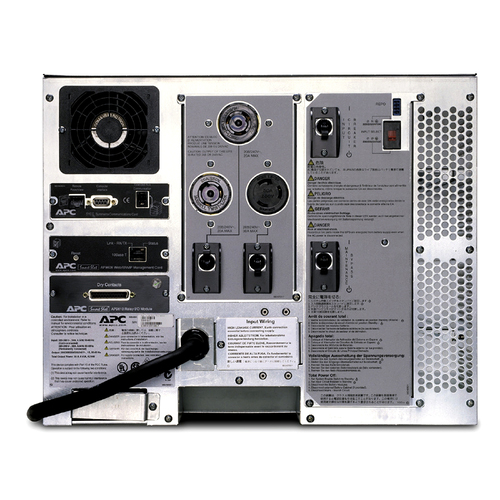

- Interface
- DB-9 RS-232, RJ-45
- Output connections
- 2x NEMA L6-20R 1x NEMA L6-30R
- Input connection type
- 3-wire (2PH + G), NEMA L6-30P
- Dimensions (WxDxH)
- 483 x 730 x 356 mm
- Nominal output voltage
- 208 V
- Nominal input voltage
- 208 V
