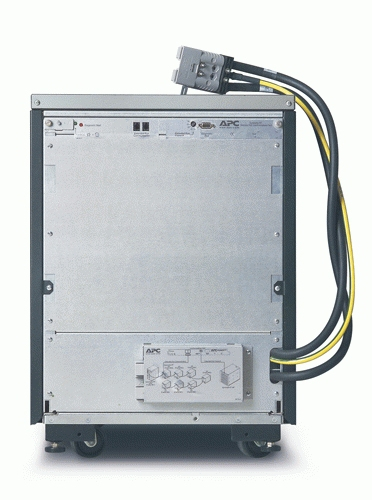

Symmetra LX uninterruptible power supply (UPS)
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Modular design
Increases adaptability with an open architecture configurable to any IT environment.
Modular design
Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Stackable external battery frames
Saves floor space without compromising runtime requirements.
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Modular design
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Modular design
Modular design provides scalable solutions to add cooling as demand increases.
Specifications
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 7776 Ah
Design
- Product colour
- Black
Operational conditions
- Operating temperature (T-T)
- -15 - 45 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Certificates
- Certification
- CSA, UL 1778
Weight & dimensions
- Weight
- 349.1 kg
Packaging data
- Package weight
- 370.5 kg
Other features
- Dimensions (WxDxH)
- 483 x 726 x 602 mm
- Package dimensions (WxDxH)
- 599 x 997 x 914 mm
