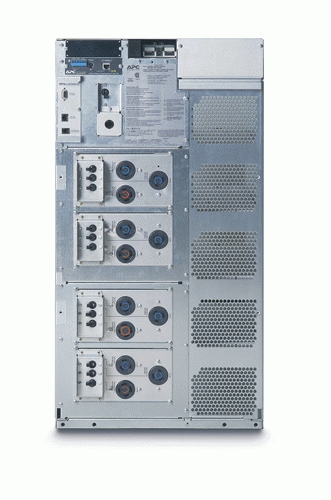

Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mount, 208/240V uninterruptible power supply (UPS) 6400 W
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Modular design
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Configurable for N+1 internal redundancy
Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.
Redundant Intelligence Modules
Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.
Hot-swappable intelligence modules
Ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement.
Hot-swappable power modules
Ensures clean, uninterrupted power to protected equipment during Power Module replacement.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Power Modules connected in parallel
Enhances availability by allowing immediate, seamless recovery from isolated module failures.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Specifications
Features
- Output power capacity
- 8 kVA
- Output power
- 6400 W
- Input frequency
- 50/60 Hz
- Emergency Power Off (EPO)
- Yes
- Noise level
- 62 dB
- Audible alarm(s)
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at full load
- 5.9 min
- Typical backup time at half load
- 17 min
- Battery recharge time
- 3 h
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
Certificates
- Certification
- CSA,FCC Part 15 Class A,UL 1778
Weight & dimensions
- Weight
- 198.6 kg
Other features
- Interface
- DB-9 RS-232, Smart-Slot
- Output connections
- 1x 4-wire 4x NEMA L14-30R 8x NEMA L5-20R
- Input connection type
- 4-wire
- Dimensions (WxDxH)
- 472 x 688 x 836 mm
- Output voltage note
- Configurable for 120/208 or 120/240 output voltage
- Nominal input voltage
- 208 V
