APCUninterruptible Power Supplies (UPSs)

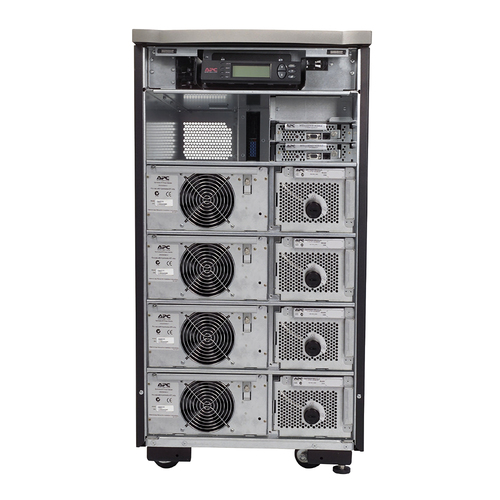

Symmetra LX 16kVA Scalable to 16kVA N+1 Tower, 208/240V
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Symmetra® LX
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
-Symmetra LX, 12.8 kW.
-16 kVA,Input 208V.
-Output 120V, 208V.
-Interface Port DB-9 RS-232.
-Smart-Slot.
-Extended runtime model.
Specifications
Features
- Output power capacity
- 16 kVA
- Output power
- 12800 W
- Emergency Power Off (EPO)
- Yes
- Noise level
- 62 dB
- Audible alarm(s)
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at full load
- 6 min
- Typical backup time at half load
- 17.1 min
- Battery recharge time
- 3 h
- Replacement battery cartridge
- SYBT5
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Weight & dimensions
- Weight
- 307.7 kg
Packaging data
- Package weight
- 337.73 g
Other features
- Dimensions (WxDxH)
- 483 x 726 x 937 mm
- Nominal input voltage
- 208 V
- Communication options, slot
- SmarSlot
- Package dimensions (WxDxH)
- 599 x 997 x 1181 mm
