APCUninterruptible Power Supplies (UPSs)

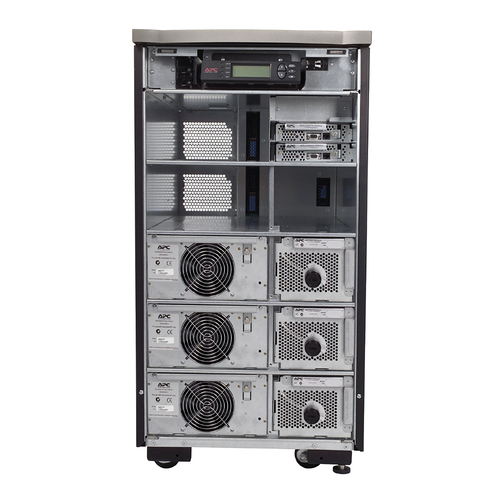

Symmetra LX 12kVA scalable to 16kVA N+1 Tower
- 12 kVA 9600 W
- Sealed Lead Acid (VRLA)
- Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
APC Symmetra LX, 9600 Watts / 12 kVA,Input 208V / Output 120V, 208V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model
-Warranty: 2 years repair or replace
Specifications
Features
- Output power capacity
- 12 kVA
- Output power
- 9600 W
- Input operation voltage (min)
- 96 V
- Input operation voltage (max)
- 138 V
- Input frequency
- 45/65 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 240 V
- Emergency Power Off (EPO)
- Yes
- Noise level
- 62 dB
- Audible alarm(s)
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at full load
- 6 min
- Typical backup time at half load
- 17.1 min
- Battery recharge time
- 3 h
- Replacement battery cartridge
- SYBT5
Design
- Form factor
- Tower
- Product colour
- Black
Weight & dimensions
- Weight
- 263.6 kg
Packaging data
- Bundled software
- PowerChute Network Shutdown v2.2.3
- Package weight
- 287.3 kg
Logistics data
- Products per pallet
- 1 pc(s)
Other features
- Dimensions (WxDxH)
- 483 x 726 x 937 mm
- Nominal output voltage
- 208 V
- Nominal input voltage
- 208 V
- Compatible operating systems
- AIX, HP/UX, Linux, Mac OS X, Novell, Solaris, Windows 2000, Windows 2003, Windows Vista, Windows XP
- Package dimensions (WxDxH)
- 599 x 997 x 1181 mm
