Smart-UPS RT 20KVA RM 208V, 208V/120V 5KVA Step down Transformer
- 20 kVA
- 18 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
LCD display
Alpha-Numeric Display which displays system parameters and alarms.
Removable input/output wiring tray
Allows quick and easy installation and maintenance of the UPS.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Manageable external batteries
Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Scalable runtime
Allows additional run time to be quickly added as needed.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Network manageable
Provides remote management of the UPS over the network.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
SmartSlot
Customize UPS capabilities with management cards.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial Connectivity
Provides management of the UPS via a serial port.
Specifications
Features
- Output power capacity
- 20 kVA
- Input operation voltage (min)
- 160 V
- Input operation voltage (max)
- 280 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 208 V
- Maximum current
- 105 A
- Efficiency
- 94%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Input current Total Harmonic Distortion (THD)
- 5%
- EMI/RFI noise filtering
- Yes
- EMI/RFI noise filtering
- 59 dB
- Power protection features
- Overload
- Audible alarm(s)
- Yes
Ports & interfaces
- AC outlet types

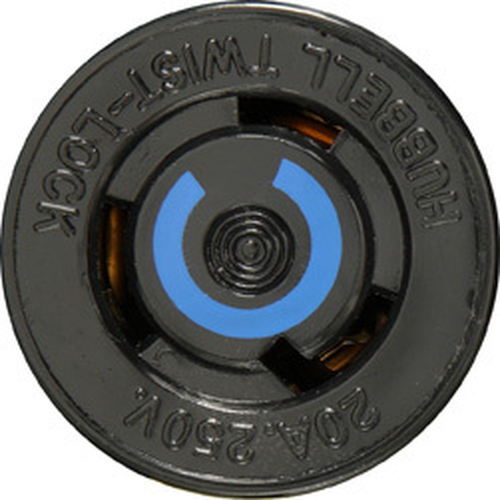

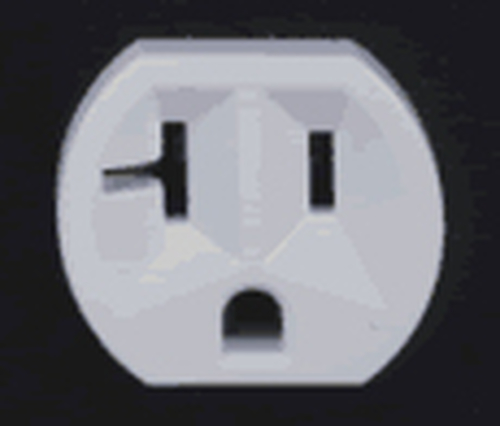

- NEMA 5–20R, NEMA L6-20R, NEMA L6-30R
- AC outlets quantity
- 18 AC outlet(s)
- Serial ports quantity
- 3
- RS-232 ports
- 1
- Ethernet LAN (RJ-45) ports
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Number of battery cells
- 4
- Battery recharge time
- 2.50 h
- Cold start
- Yes
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 14U
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Certification
- UL 1778
Weight & dimensions
- Width
- 432 mm
- Depth
- 773 mm
- Height
- 622 mm
- Weight
- 290.9 kg
Packaging data
- Package weight
- 364.3 kg
Other features
- Number of phases
- 2
- Interface
- DB-9 RS-232, RJ-45, Smart-Slot
- Dimensions (WxDxH)
- 432 x 773 x 622 mm
- Nominal output voltage
- 120-208 V
- Filtering description
- 0.3% IEEE
- Nominal input voltage
- 208 V
- Networking features
- 10/100 Base-T
- Operating temperature (T-T)
- 32 - 104 °F
- Overload protection
- Yes
- Over current protection
- Yes
- Package dimensions (WxDxH)
- 610 x 1003 x 1244 mm
