APCUninterruptible Power Supplies (UPSs)
Smart-UPS RT 15kVA RM 208V
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

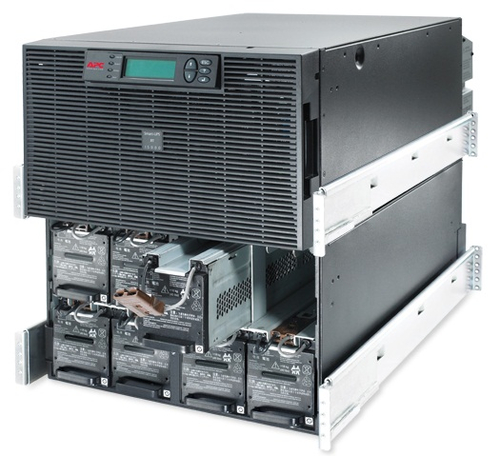

APC Smart-UPS RT 15kVA RM 208V
LCD display:
Alpha-Numeric Display which displays system parameters and alarms.

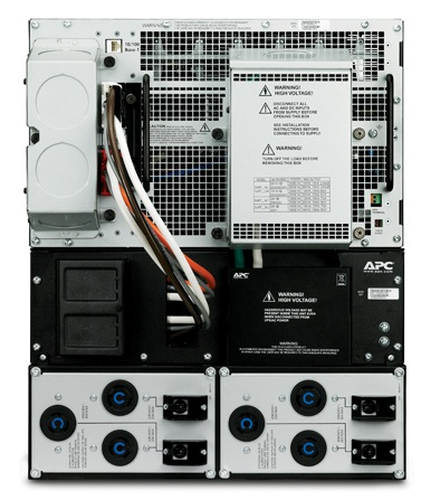

Removable input/output wiring tray:
Allows quick and easy installation and maintenance of the UPS.
Rack/Tower convertible:
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Manageable external batteries:
Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.
Specifications
Features
- Output power capacity
- 15 kVA
- Output power
- 12000 W
- Input frequency
- 40/70 Hz
- Emergency Power Off (EPO)
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
Battery
- Battery recharge time
- 2.5 h
Design
- Product colour
- Black
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
Weight & dimensions
- Weight
- 247.7 kg
Other features
- Battery type
- Lead-Acid
- Interface
- DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
- Output connections
- 2PH + G NEMA L6-20R
- Input connection type
- 2PH + G
- Dimensions (WxDxH)
- 432 x 773 x 533 mm
- Nominal output voltage
- 208 V
- Output voltage note
- 208/240
- Nominal input voltage
- 208 V
- Package dimensions (WxDxH)
- 610 x 1003 x 990 mm
