APCUninterruptible Power Supplies (UPSs)

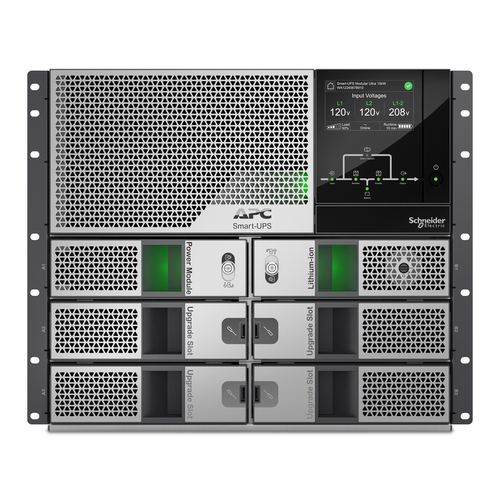

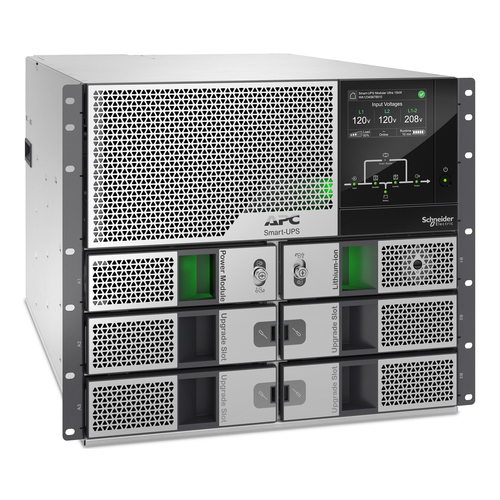

SmartUPS Modular Ultra 5kW Scalable to 15kW N+1 Redundant, Rackmount, 208/240V 9U Rackmountable 120
- 9U Rackmount UPS Chassis, scalable to 15kW with 1 (5kW) Power and 1 Battery Module
- 100A chassis backward compatible with existing Symmetra LX wiring
- At 50% smaller & 60% lighter, fewer people are required to install
- 1-Year Secure Network Management Card subscription included
- EcoStruxure Ready Smart-UPS provides visibility anywhere, anytime
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Smart-UPS™ Modular Ultra provides up to 2.5x more power density in half the size and weight of comparable UPSs. Its modular design allows you to scale power or runtime as your business needs change*. The 100A chassis supports backward compatibility with your existing Symmetra LX wiring, supporting up to 15kW of power protection. The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction, allows you to save money on Total Cost of Ownership compared to VRLA UPSs. *Additional 5kW power (SRYL5KPMT) and battery (SRYLBM) modules sold separately. Compatible with Genuine APC battery modules only.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 5 kVA
- Output power
- 5000 W
- Waveform
- Sine
- Input operation voltage (min)
- 120 V
- Input operation voltage (max)
- 240 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 240 V
- Maximum current
- 27 A
- Number of input phases
- 1
- Number of output phases
- 1
- Power factor
- 0.5
- Emergency Power Off (EPO)
- Yes
- Noise level
- 68 dB
Ports & interfaces
- USB port
- Yes
- Serial interface
- Yes
- Network card slot
- Yes
- SmartSlot
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Number of batteries included
- 1 pc(s)
- Battery life (max)
- 10 year(s)
Design
- Form factor
- Rackmount
- Rack capacity
- 9U
- Product colour
- Black, Silver
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- CE, cULus
Packaging content
- Batteries included
- Yes
- Rack mount kit
- Yes
- Management card included
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 440 mm
- Depth
- 700 mm
- Height
- 390 mm
- Weight
- 72.5 kg
Packaging data
- Package width
- 600 mm
- Package depth
- 580 mm
- Package height
- 982 mm
- Package weight
- 91.3 kg
