APCUninterruptible Power Supplies (UPSs)

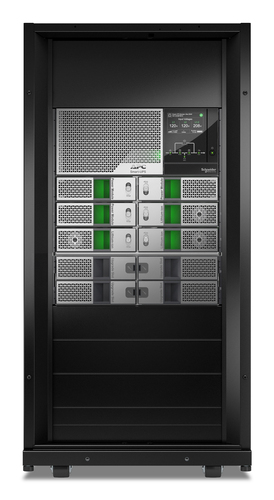

FDONLY ITEM DUE TO LITHIUM APC SmartUPS Modular Ultra 15kW Scalable to 20kW N+1 Redundant, Tower
- 24U Tower UPS chassis, scalable to 20kW with 3 (5kW) Power and 3 Battery Modules
- Modular UPS up to 50% smaller for more power and usable rack space in the same footprint
- Preconfigured design with liveswap capability
- The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Smart-UPS Modular Ultra Tower provides 2.5x more power protection and available U-space in a standalone UPS for a flexible installation to accommodate power needs where necessary. Scale up to 20kW of single-phase power protection with a smaller, lighter and more powerful modular UPS to free up enclosure space for more equipment. Designed for local edge environments, the Smart-UPS Modular Ultra rackmount and tower solutions provide consistent and reliable connectivity at the most critical moments.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power
- 15000 W
- Waveform
- Sine
- Input operation voltage (min)
- 120 V
- Input operation voltage (max)
- 240 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 240 V
- Power factor
- 0.5
- Emergency Power Off (EPO)
- Yes
Ports & interfaces
- USB port
- Yes
- Serial interface
- Yes
Design
- Form factor
- Tower
- Product colour
- Black, Silver
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Storage relative humidity (H-H)
- 0 - 95%
Weight & dimensions
- Width
- 600 mm
- Depth
- 900 mm
- Height
- 1198 mm
- Weight
- 234 kg
Packaging data
- Package width
- 746 mm
- Package depth
- 995 mm
- Package height
- 1322 mm
- Package weight
- 256.4 kg
