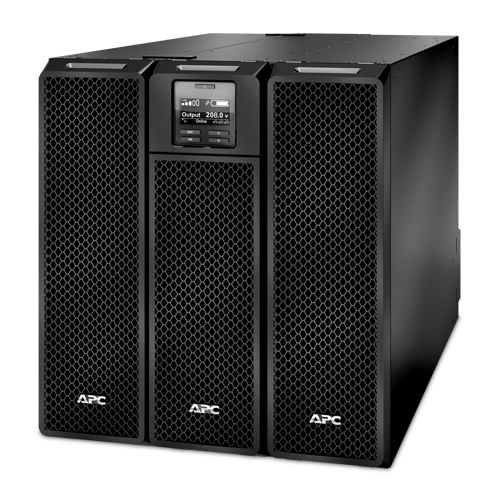

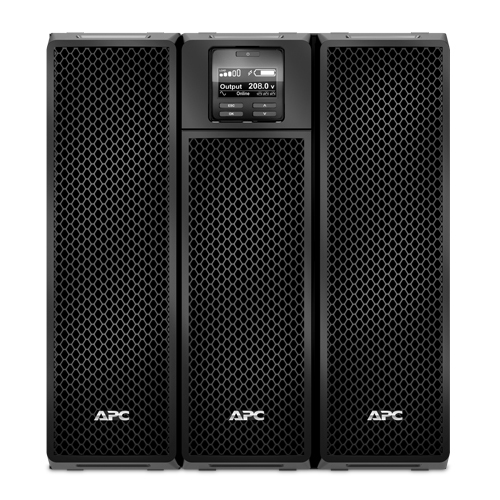

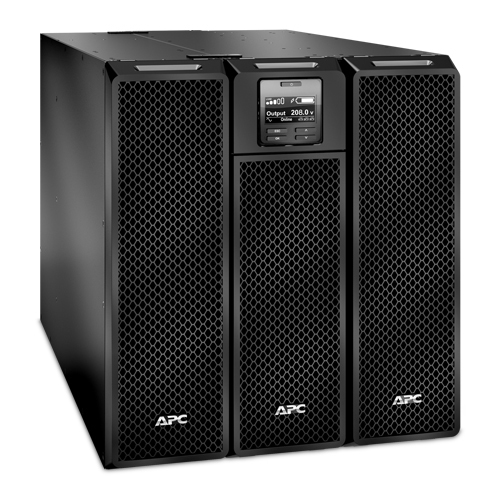

Smart-UPS uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 8000 W 18 AC outlet(s)

Part # SRT8KXLT-5KTFUPC 731304732983Warranty: 3 years419 lb

Double-conversion (Online)
8 kVA 8000 W
Waveform: Sine
18 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount/Tower Black

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Marketing Features

- Avoids costly power problems by keeping your IT equipment and data protected and available.

Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

- Low operating and maintenance costs with proven reliability and intelligent battery management.

Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

- Save time with easy and convenient remote accessibility.

Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

- Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Specifications

Features

UPS topology: Double-conversion (Online)
Output power capacity: 8 kVA
Output power: 8000 W
Waveform: Sine
Input operation voltage (min): 100 V
Input operation voltage (max): 275 V
Input frequency: 40 - 70 Hz
Output operation voltage (min): 120 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Surge energy rating: 480 J
Crest factor: 3:1
Output voltage Total Harmonic Distortion (THD): 2%
Noise level: 55 dB
Surge protection: Yes
Audible alarm(s): Yes
Web-based management: Yes
Auto-restart: Yes

Ports & interfaces

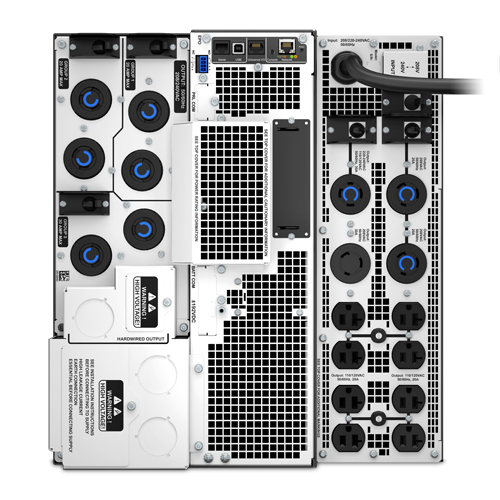

AC outlet types: Hard Wire 3-wire (2PH + G), NEMA 5–20R, NEMA L14-30R, NEMA L6-20R, NEMA L6-30R
AC outlets quantity: 18 AC outlet(s)
USB port: Yes
Serial interface: Yes
Serial interface type: RJ-45
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Cabling technology: 10/100Base-T
Emergency Power Off (EPO) connector: Yes
