APCUninterruptible Power Supplies (UPSs)
Smart-UPS On-Line,6000 Watts /6000 VA,Input 208V /Output 208V, Extended runtime model
- Double-conversion (Online)
- 6 kVA 6000 W
- Waveform: Sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Compact Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

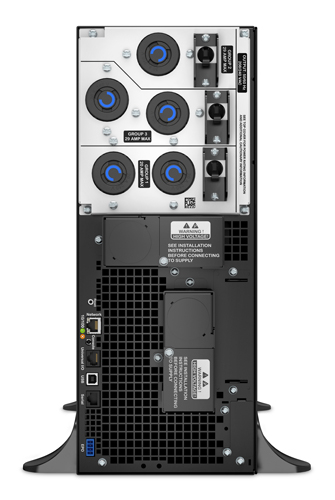

APC Smart-UPS On-Line,6000 Watts /6000 VA,Input 208V /Output 208V, Extended runtime model
Includes: CD with software, Documentation CD, Installation guide, Removable support feet, Temperature Probe, USB cable, User Manual, Warranty card, Web/SNMP Management Card
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 6 kVA
- Output power
- 6000 W
- Waveform
- Sine
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 275 V
- Input frequency
- 40/70 Hz
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 480 J
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 3%
Ports & interfaces
- AC outlet types
- NEMA L6-20R, NEMA L6-30R
- AC outlets quantity
- 6 AC outlet(s)
- USB 2.0 ports quantity
- 1
- Serial ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery recharge time
- 1.50 h
Design
- Form factor
- Compact
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CSA, FCC, NOM, UL
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 174 mm
- Depth
- 719 mm
- Height
- 432 mm
- Weight
- 61.2 kg
Packaging data
- Package width
- 610 mm
- Package depth
- 960 mm
- Package height
- 370 mm
- Package weight
- 64.4 kg
Logistics data
- Products per pallet
- 6 pc(s)
Downloads
