Home/Catalogue/APC/SRT6KRMXLT-5KTF
Drag to turn · 6 views
Smart-UPS uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 17 AC outlet(s)
- Double-conversion (Online)
- 6 kVA 6000 W
- Waveform: Sine
- 17 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

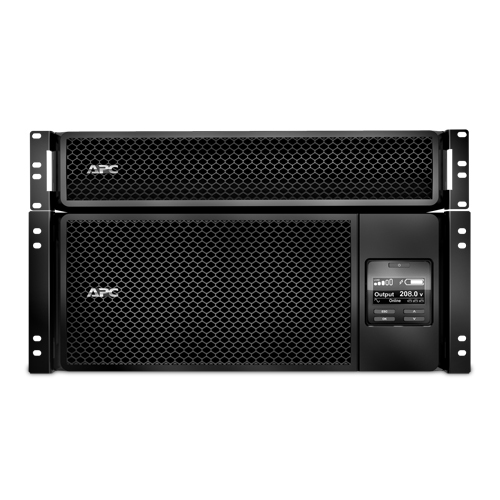

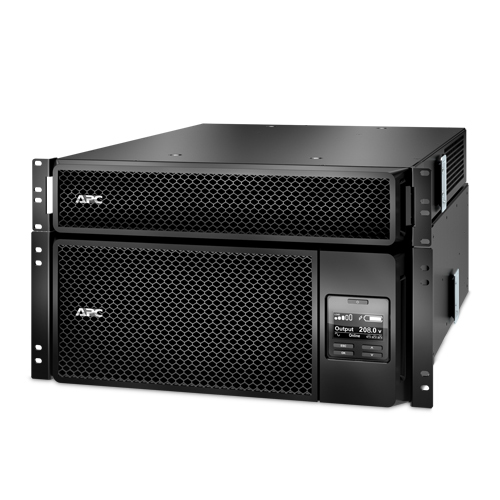

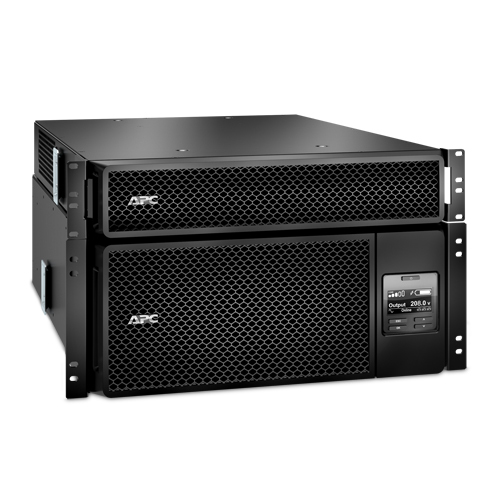

APC Smart-UPS SRT 6000VA RM with 208V to 120V 2U Step-Down Transformer
High density, double-conversion on-line power protection with scalable runtime
Includes : CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card
- 10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Hard Wire Input
UPS requires a hard wire input in order to deliver maximum output wattage to protected equipment
- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 6 kVA
- Output power
- 6000 W
- Waveform
- Sine
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 275 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 208 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 480 J
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 2%
- Noise level
- 55 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Auto-restart
- Yes

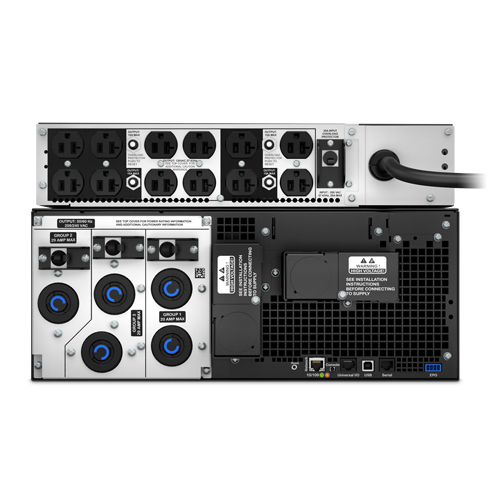

Ports & interfaces
- AC outlet types
- NEMA 5–20R, NEMA L6-20R, NEMA L6-30R
- AC outlets quantity
- 17 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RJ-45
- Ethernet LAN (RJ-45) ports
- 1
- Cabling technology
- 10/100Base-T
- SmartSlot
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 875 VAh
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 1.5 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
- Replacement battery cartridge
- APCRBC140
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 6U
- Product colour
- Black
- Display type
- LCD
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778, REACH
Packaging content
- Rack mount kit
- Yes
- Cables included
- USB cable
- Manual
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 432 mm
- Depth
- 719 mm
- Height
- 263 mm
- Weight
- 104.3 kg
Packaging data
- Bracket
- Yes
- Temperature sensor
- Yes
- Resource CD
- Yes
- Warranty card
- Yes
- Package width
- 622 mm
- Package depth
- 960 mm
- Package height
- 624 mm
- Package weight
- 117.9 kg
Logistics data
- Products per pallet
- 6 pc(s)
