APCUninterruptible Power Supplies (UPSs)

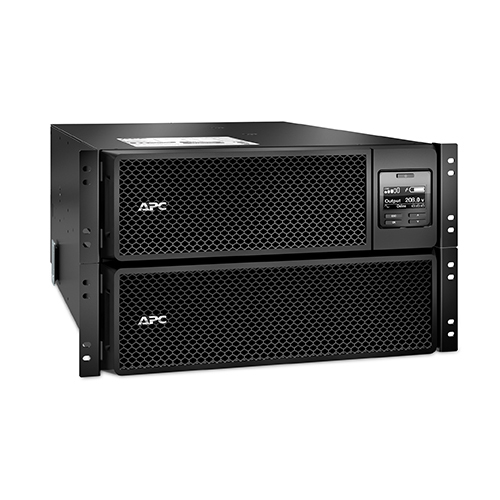

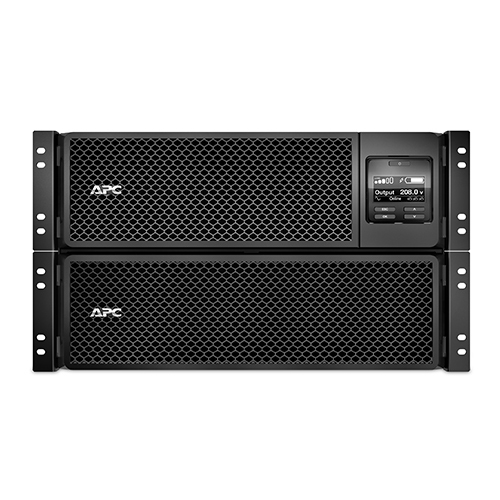

Smart-UPS SRT 10000VA RM 208V L630 uninterruptible power supply (UPS) Double-conversion (Online) 10
- Double-conversion (Online)
- 10 kVA 10000 W
- Waveform: Sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA) 1799 Ah
- Rackmount Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
High density, double-conversion on-line power protection with scalable runtime.
01
LCD graphics display
- Generator compatible
- Cold-start capable
02
- Power conditioning
03
- Battery failure notification
- Frequency and voltage regulation
- Resettable circuit breaker
- Safety-agency approved
04
- Network manageable
- Low operating and maintenance costs with proven reliability and intelligent battery management
- Avoids costly power problems by keeping your IT equipment and data protected and available
- Peace of mind that comes with full equipment compatibility and reliability of a leader
- Save time with easy and convenient remote accessibility
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 10 kVA
- Output power
- 10000 W
- Waveform
- Sine
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 275 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 208 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 480 J
- Efficiency
- 94.5%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 2%
- Noise level
- 55 dB
- Surge protection
- Yes
- Power protection features
- Overload
- Audible alarm(s)
- Yes
- Auto-restart
- Yes

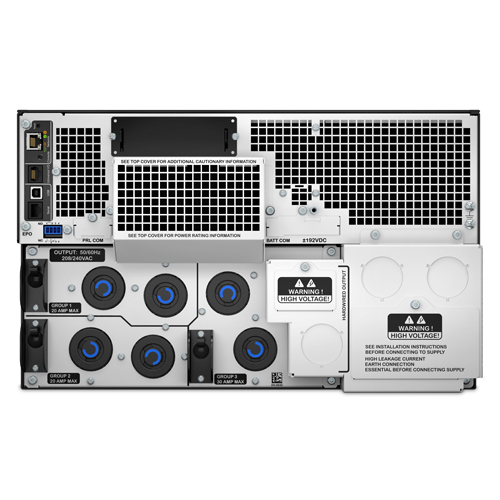

Ports & interfaces
- AC outlet types
- NEMA L6-30R
- Power plug
- Terminal
- AC outlets quantity
- 6 AC outlet(s)
- USB 2.0 ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 3
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 1799 Ah
- Typical backup time at full load
- 4 min
- Typical backup time at half load
- 15 min
- Battery recharge time
- 1.5 h
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Form factor
- Rackmount
- Housing material
- Steel
- Rack capacity
- 6U
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Battery replacement
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Certificates
- Compliance certificates
- RoHS
Packaging content
- Rack mount kit
- Yes
- Cables included
- USB cable
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 432 mm
- Depth
- 715 mm
- Height
- 263 mm
- Weight
- 111.6 kg
Packaging data
- Bracket
- Yes
- Resource CD
- Yes
- Package width
- 600 mm
- Package depth
- 1000 mm
- Package height
- 681 mm
- Package weight
- 132.1 kg
Logistics data
- Products per pallet
- 1 pc(s)
