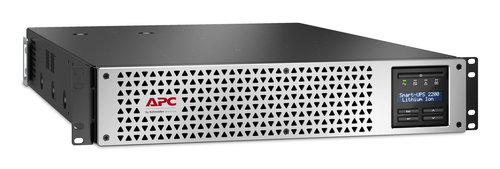

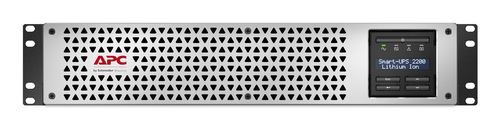

2200VA Lithium-Ion Smart-UPS 2U Rack-mountable - AVR - 2 Hour Recharge - 7.80 Minute Stand-by - 120
- 1920VA/1920W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

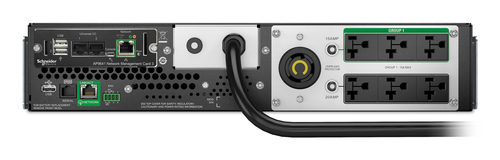

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-20P input, 6 NEMA 5-20R and 1 NEMA L5-20R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1.92 kVA
- Output power
- 1920 W
- Waveform
- Sine
- Input operation voltage (min)
- 82 V
- Input operation voltage (max)
- 144 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 110 V
- Output operation voltage (max)
- 125 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 530 J
- Crest factor
- 3:1
- Output voltage Total Harmonic Distortion (THD)
- 5%
Ports & interfaces
- AC outlet types
- NEMA L5-20R, NEMA 5-20R
- Power plug
- NEMA 5-20R
- AC outlets quantity
- 6 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- SmartConnect port
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Battery life (max)
- 10 year(s)
- Battery recharge time
- 2 h
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Cable length
- 2.4 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Non-operating altitude
- 0 - 7620 m
Technical details
- Battery included
- Yes
Certificates
- Compliance certificates
- cULus
Packaging content
- Batteries included
- Yes
Weight & dimensions
- Width
- 432 mm
- Depth
- 683 mm
- Height
- 86 mm
- Weight
- 31.9 kg
Packaging data
- Package width
- 980 mm
- Package depth
- 600 mm
- Package height
- 254 mm
- Package weight
- 40.7 kg
