APCPower Distribution Units (PDUs)

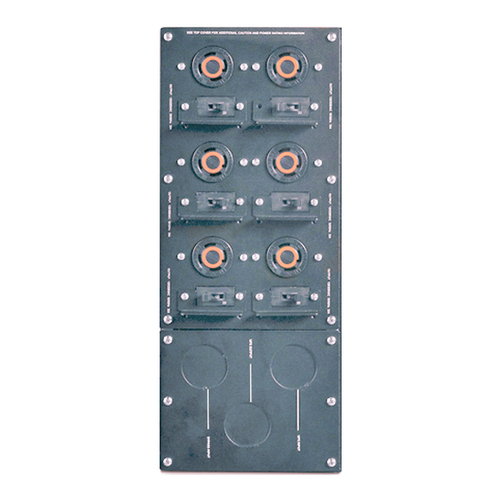

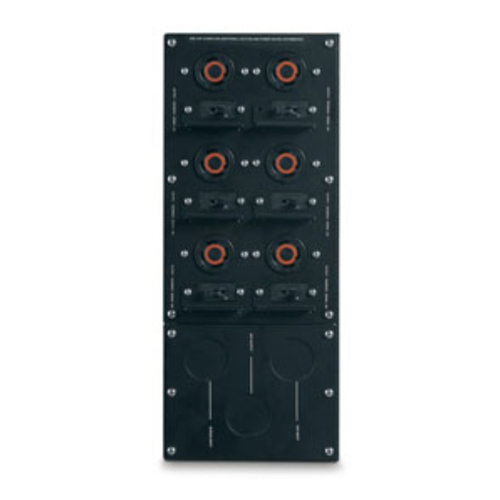

Service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input; (6) L14-30R output
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
19 inch Rack-Mountable
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
01
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
02
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Specifications
Design
- Product colour
- Black
Ports & interfaces
- Input connection type
- Hard Wire 3-wire (2PH + G), Hard Wire 4-wire (2PH+N+G)
- Output connections
- 6x NEMA L14-30R
Power
- Nominal input voltage
- 208 V
- AC input frequency
- 50 - 60 Hz
- Load capacity
- 20000 VA
- Maximum input current per phase
- 100 A
- Maximum total current draw per phase
- 100 A
Certificates
- Certification
- CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778
Operational conditions
- Operating temperature (T-T)
- -20 - 50 °C
- Storage temperature (T-T)
- -40 - 65 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
Weight & dimensions
- Width
- 432 mm
- Depth
- 673 mm
- Height
- 178 mm
- Weight
- 23.2 kg
Packaging data
- Package weight
- 33.6 kg
- Package width
- 610 mm
- Package depth
- 991 mm
- Package height
- 305 mm
