APCMaintenance Bypass Panels (MBPs)

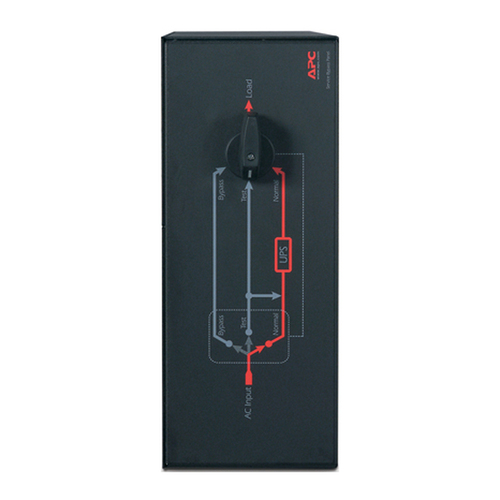

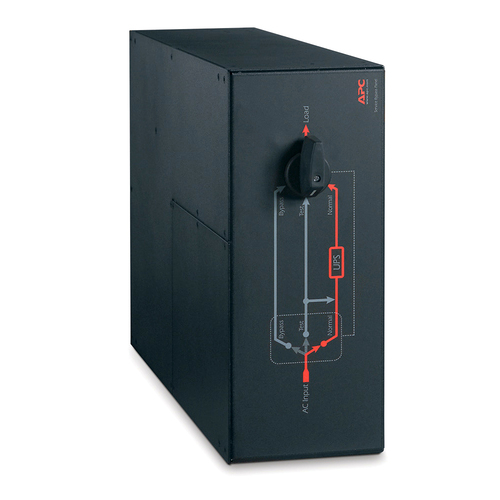

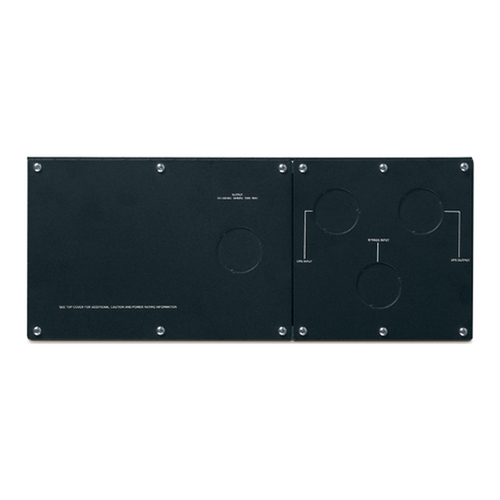

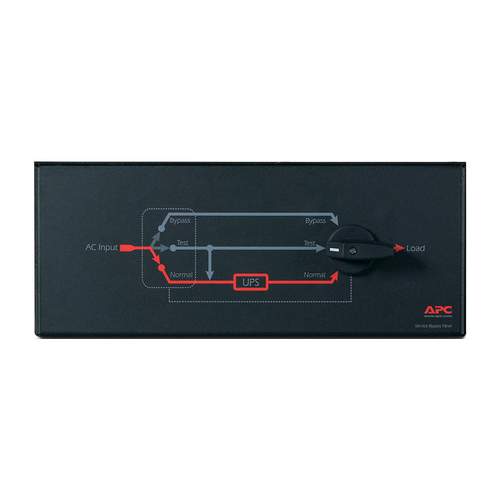

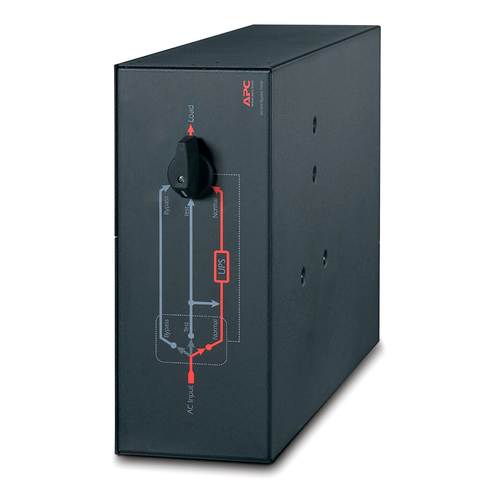

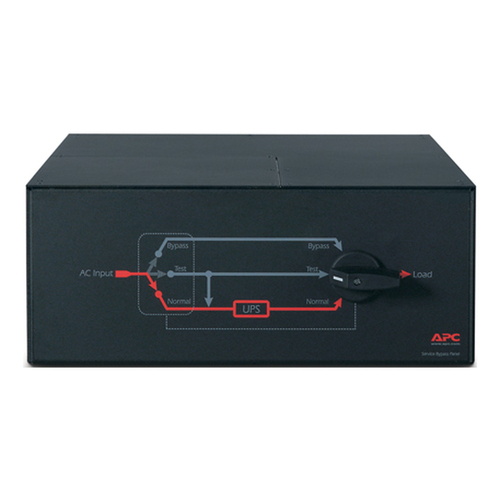

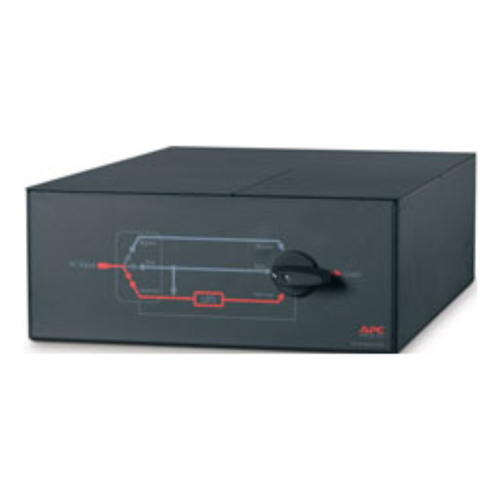

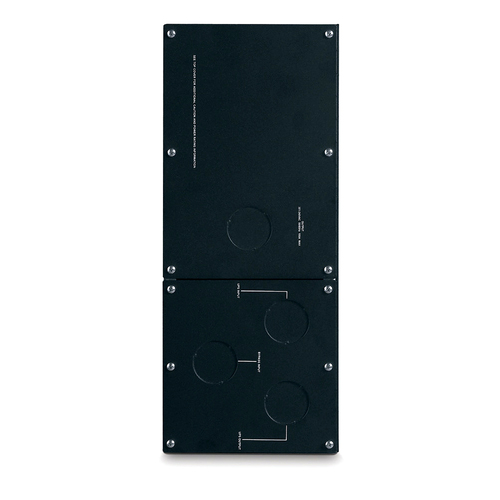

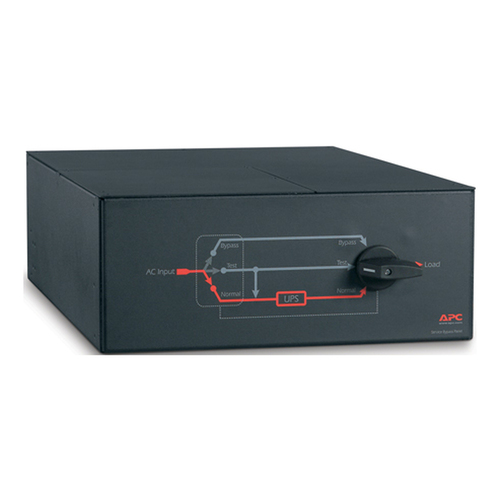

Service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input/output
- Supports up to 100A, suitable for large-scale applications
- Compatible with various input and output voltages
- Includes a bypass switch for seamless maintenance
- Designed for rack installation, saving space in data centers
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The APC Service Bypass Panel support voltage of 200V, 208V, and 240V. It features a 4U rack-mount design and is rack mountable. It includes an installation guide, rack mounting brackets, and a user manual.
Specifications
Features
- Rack capacity
- 4U
- Country of origin
- China
Ports & interfaces
- Output connections
- hard wire 3-wire (H N + E) for 1 zone(s); hard wire 3-wire (2P + E) for 1 zone(s); hard wire 4-wire (2P + N + E) for 1 zone(s)
Power
- AC input voltage
- 200 / 208 / 230 / 480 3 phases
- AC output voltage
- 120 / 200 / 208 / 230 V
Certificates
- Compliance certificates
- RoHS, REACH, WEEE
- Certification
- CSA; GOST
Operational conditions
- Operating temperature (T-T)
- -20 - 50 °C
- Operating relative humidity (H-H)
- 0 - 95%
Weight & dimensions
- Width
- 432 mm
- Depth
- 660 mm
- Height
- 178 mm
- Weight
- 21.4 kg
Technical details
- Sustainable packaging
- No
- Packaging recycled materials
- Recycled cardboard
- Mounting
- front
- Preferred mounting position
- lower
- Take-back system
- No
- Packaging without single use plastic
- No
Logistics data
- Customs product code (TARIC)
- 8537109199
