APCPower Distribution Units (PDUs)

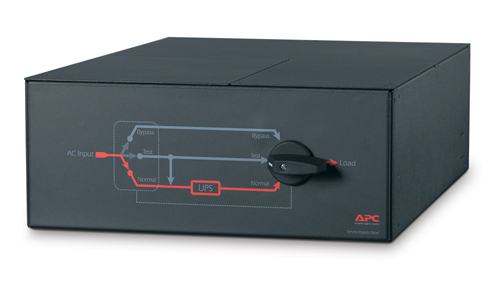

Service Bypass Panel- 200/208/240V power distribution unit (PDU) Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
19 inch Rack-Mountable
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
High Power Density
Specifications
Design
- Product colour
- Black
Ports & interfaces
- Input connection type
- Hard Wire 3-wire (2PH + G)
- Output connections
- 3x NEMA L6-20R 3x NEMA L6-30R
Power
- AC input frequency
- 50 - 60 Hz
- Load capacity
- 20000 VA
- Maximum input current per phase
- 100 A
- Maximum total current draw per phase
- 100 A
Certificates
- Certification
- CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778
Operational conditions
- Operating temperature (T-T)
- -20 - 50 °C
- Storage temperature (T-T)
- -40 - 65 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
Weight & dimensions
- Width
- 432 mm
- Depth
- 673 mm
- Height
- 178 mm
- Weight
- 21.8 kg
Packaging data
- Package weight
- 31.8 kg
- Package width
- 610 mm
- Package depth
- 991 mm
- Package height
- 305 mm
