APCRack Cabinets

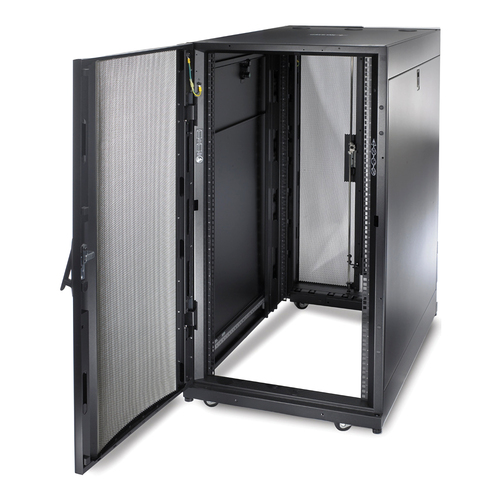

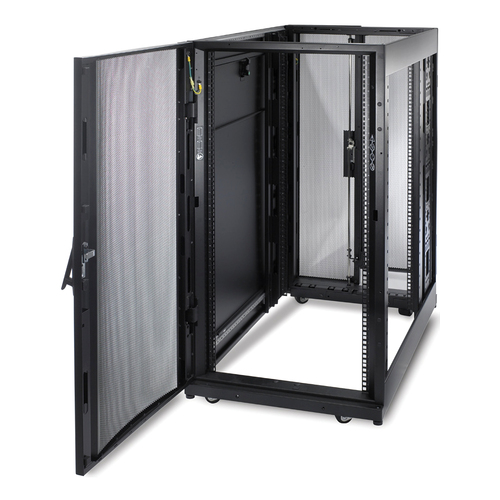

NetShelter SX, Server Rack Enclosure, 24U, Black, 1198.5H x 600W x 1070D mm
- 24U height makes it suitable for smaller spaces while still providing ample rack space
- Supports a maximum static load of 3000 lbs and a dynamic load of 2250 lbs
- Features adjustable mounting rails for various equipment depths
- Includes lockable front and rear doors, as well as side panels
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
An industry standard rack with the most standard features for speed of deployment and installation. Ready for low to medium density edge computing.
Specifications
Features
- Rack capacity
- 24U
- Type
- Freestanding rack
- Maximum weight capacity
- 1360.78 kg
- Maximum weight capacity (rolling)
- 1020.58 kg
- Product colour
- Black
- Side panel style
- Blind
- Key lock
- Yes

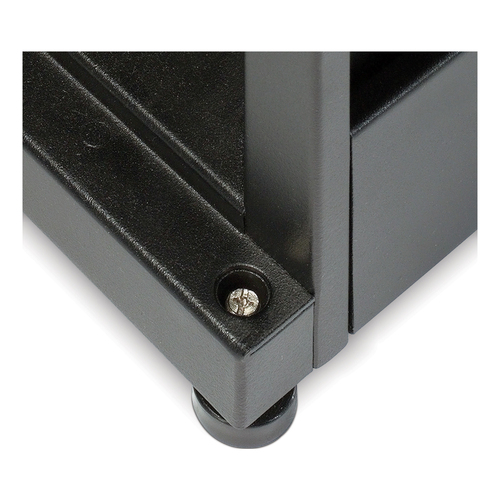

- Adjustable feet
- Yes
- Castor wheels
- Yes
- International Protection (IP) code
- IP20
- Certification
- EIA-310-D
Weight & dimensions
- Size (imperial)
- 48.3 cm (19")
- Width
- 600 mm
- Depth
- 1070 mm
- Height
- 1198.5 mm
- Weight
- 89.1 kg
- Mounting depth (min)
- 19.1 cm
- Mounting depth (max)
- 91.5 cm
Packaging data
- Package width
- 746 mm
- Package depth
- 1156 mm
- Package height
- 1322 mm
- Package weight
- 106.8 kg
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
Technical details
- Total carbon footprint (kg of CO2e)
- 374.8819250139899
- Compliance certificates
- RoHS, REACH, WEEE
- Sustainable packaging
- No
- Preferred mounting position
- no preference
- Take-back system
- No
- Packaging without single use plastic
- No
Logistics data
- Country of origin
- China
- Customs product code (TARIC)
- 9403208000
- Harmonized System (HS) code
- 85381000
Other features
- Package dimensions (WxDxH)
- 899 x 1219 x 1350 mm
