APCRack Cabinets

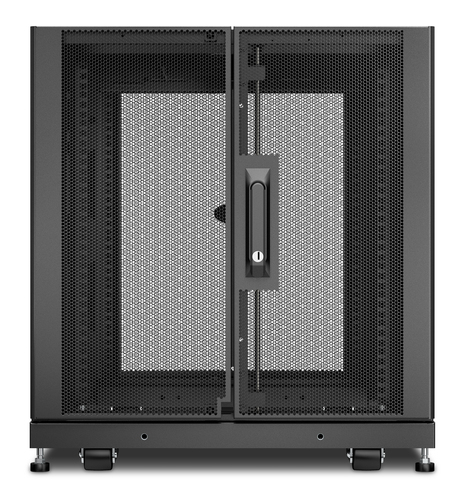

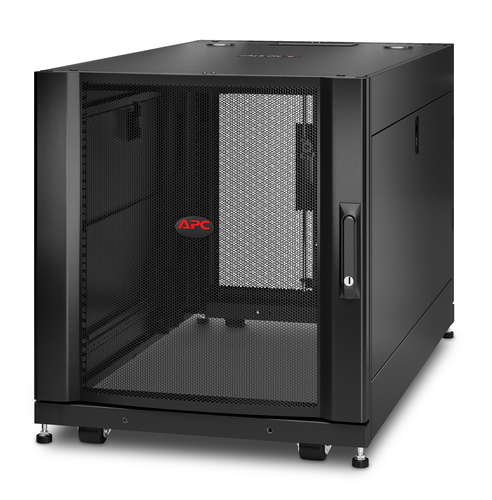

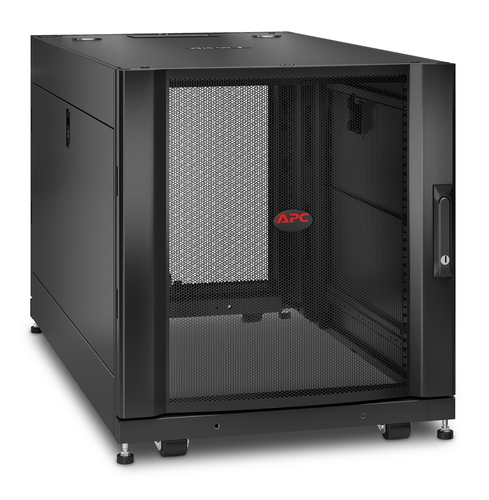

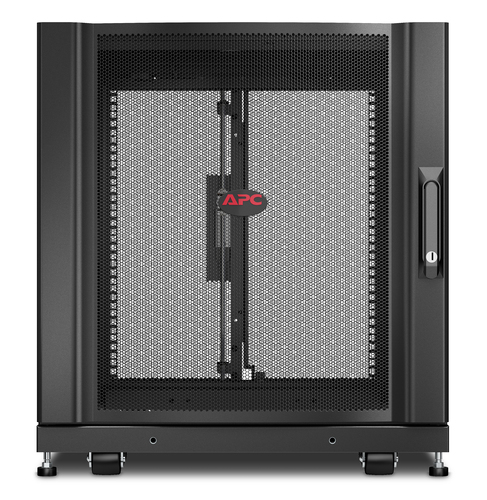

NetShelter SX, Server Rack Enclosure, 12U, Black, 658H x 600W x 1070D mm
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
An industry standard rack with the most standard features for speed of deployment and installation. Ready for low to medium density edge computing. Shorter height allows for deployment underneath cabinets, desks, in remote office branch office spaces for a secure and discrete solution for IT devices.
Specifications
Features
- Rack capacity
- 12U
- Type
- Freestanding rack
- Maximum weight capacity
- 272 kg
- Product colour
- Black
- Side panels included
- Yes
- Key lock
- Yes
- Front door key lock
- Yes
- International Protection (IP) code
- IP20
- Certification
- UL 2416, UL 60950-1, REACH
Weight & dimensions
- Size (imperial)
- 48.3 cm (19")
- Width
- 600 mm
- Depth
- 1070 mm
- Height
- 658 mm
- Weight
- 59 kg
- Mounting depth (min)
- 19.1 cm
- Mounting depth (max)
- 92.1 cm
Packaging data
- Package width
- 750 mm
- Package depth
- 1160 mm
- Package height
- 795 mm
- Package weight
- 81 kg
Technical details
- Total carbon footprint (kg of CO2e)
- 245.78
- Compliance certificates
- RoHS
Logistics data
- Harmonized System (HS) code
- 85381000
