APC AR106V Drag to turn · 4 views
APCRack Cabinets

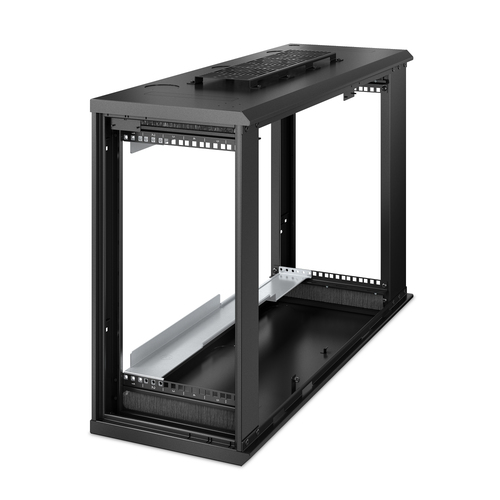

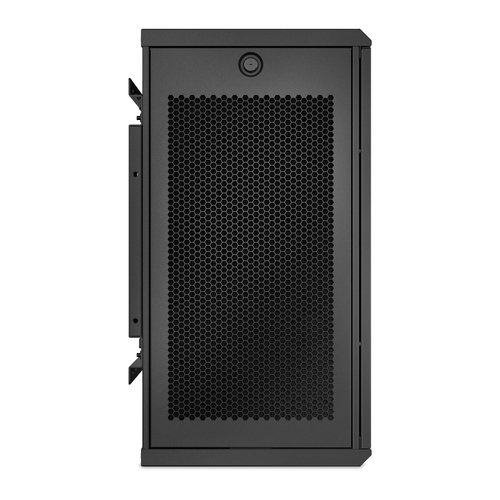

NetShelter 6U Low-profile Wallmount Rack Enclosure Cabinet 120V Server Depth

Part # AR106VUPC 731304402022Warranty: 5 year90 lb

  • Compact, Low-Profile Design
  • Supports latest generation edge server and
  • networking equipment up to 30” (762mm)
  • NetBotz Physical Security Options
  • High Weight Load Capacity – up to 250lb
  • (113kg)
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

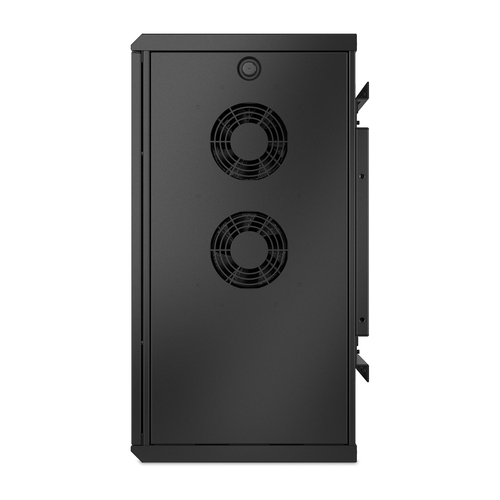

Ideal for retail, healthcare, educational facilities and light industrial spaces, the low-profile APC wall mount rack offers an efficient solution for deploying hyperconverged server and networking for edge computing applications. The rack enclosure allows longer depth equipment to be wall mounted, up to 30 inches deep. A detachable wall bracket and optional casters (sold separately) allow the server rack to be mounted on either the wall or stand alone on the floor. A dust filter and two integrated fans allow deployment in light-industrial environments. Shock packaging is included and allows optional equipment pre-installed before shipment, speeding IT deployment. APC Smart-UPS, APC NetBotz Physical and Environmental Security, and APC EcoStruxure IT can be configured with this cabinet (sold separately). 6U Vertical wall mount cabinet, 30 mounting depth, 250lb weight capacity, 19 rack width, ships fully assembled, MERV 5/G3 dust filter and 120v integrated fans included, input connector IEC 60320 C13, 5 year APC warranty

Specifications

Features

Rack capacity
6U
Type
Wall mounted rack
Maximum weight capacity
113 kg
Product colour
Black
Key lock
Yes

Power

AC input voltage
100 - 120 V
AC input frequency
60 Hz

Weight & dimensions

Size (imperial)
48.3 cm (19")
Width
353 mm
Depth
968 mm
Height
648 mm
Weight
36.3 kg
Mounting depth (min)
76.2 cm
Mounting depth (max)
76.2 cm

Packaging data

Package width
1064 mm
Package depth
734 mm
Package height
427 mm
Package weight
44.9 kg

Technical details

Compliance certificates
RoHS
