APCPower Distribution Units (PDUs)

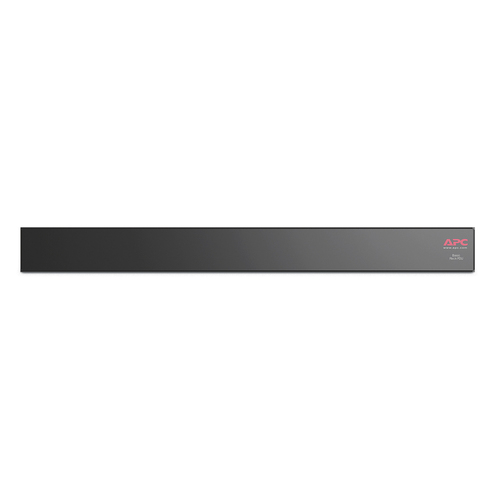

Rack PDU, Basic, 1U, 30A, 208V, (10) C13
- Suitable for high-density power distribution in data centers and network environments
- It features 10 IEC 60320 C13 outlets, providing flexibility to connect a variety of IT equipment
- The 1U horizontal rack-mount design optimizes the use of space
- Easy to install and integrate into existing rack setups
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (10) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Specifications
Design
- Rack capacity
- 1U
- Product colour
- Grey
Ports & interfaces
- Input connection type
- NEMA L6-30P
Features
- Cable length
- 3.65 m
Power
- Nominal input voltage
- 200; 208; 230 V
- AC input frequency
- 60 Hz
- Nominal output voltage
- 208 V
- Output voltage
- 208 V
- Maximum total current draw per phase
- 24 A
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Compliance certificates
- RoHS, REACH, WEEE
- Certification
- cUL listed; PSE; UL listed
Operational conditions
- Operating temperature (T-T)
- -15 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 445 mm
- Depth
- 77 mm
- Height
- 44 mm
- Weight
- 2.55 kg
Technical details
- Sustainable packaging
- No
- Packaging recycled materials
- Recycled cardboard
- Halogen free
- No
- Preferred mounting position
- no preference
- Take-back system
- No
- Packaging without single use plastic
- No
Logistics data
- Country of origin
- India
- Customs product code (TARIC)
- 8544429090
- Total carbon footprint (kg of CO2e)
- 8397.9475761988
