APCPower Distribution Units (PDUs)

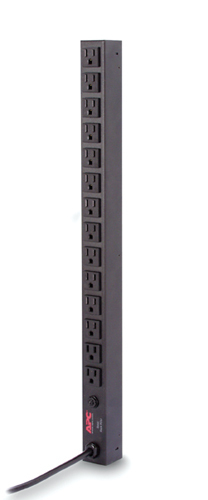

Basic Rack PDU power distribution unit (PDU) 0U Beige
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
01
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
02
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
Design
- Rack capacity
- 0U
- Product colour
- Beige
Ports & interfaces
- Input connection type
- NEMA 5-15P
- Output connections
- 14 x NEMA 5-15R
Features
- Cable length
- 3.6 m
Power
- Nominal input voltage
- 120 V
- AC input frequency
- 50 - 60 Hz
- Nominal output voltage
- 120 V
- Output voltage
- 120 V
- Load capacity
- 1800 VA
- Maximum total current draw per phase
- 15 A
Certificates
- Certification
- cUL/CSA/ETI/UL 1363
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
Weight & dimensions
- Width
- 44 mm
- Depth
- 44 mm
- Height
- 610 mm
- Weight
- 2.18 kg
- Weight (imperial)
- 2.18 kg (4.8 lbs)
Packaging data
- Package weight
- 2.91 kg
- Package width
- 178 mm
- Package depth
- 152 mm
- Package height
- 648 mm
Logistics data
- Total carbon footprint (kg of CO2e)
- 55.22
