APCPower Adapters & Inverters
Power, Accessory, NetBotz, Universal 24VDC Output
- Provides power to SmartSlot Expansion Chassis and select NetBotz Applications
- Required for Rack Access Pods for applications with more than 4 pods
- Universal Power Supply Unit for NetBotz
- IEC 60320-C7 and BS-1363 female power cable
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

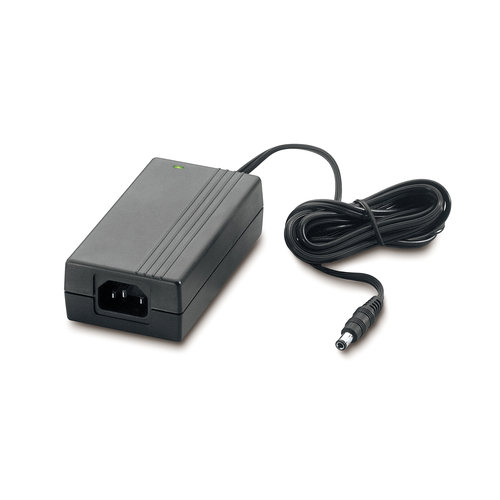

External power supply that provides additional power for select NetBotz appliances
Specifications
Features
- Power supply type
- Indoor
- Power current type
- AC-to-DC
- Output voltage
- 24 V
- Adjustable output voltage
- No
Performance
- Connector(s)
- IEC320-C7/BS-1363
Design
- Product colour
- Black
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Compliance certificates
- RoHS, REACH, WEEE
- Certification
- AS/NZS 3548 (C-Tick) class A; cUL listed; CE; EMC directive 2004/108/EC; low voltage directive 2006/95/EC; PSE; UL listed; VCCI class A; VDE
Weight & dimensions
- Width
- 95 mm
- Depth
- 70 mm
- Height
- 70 mm
- Weight
- 340 g
Packaging data
- Package width
- 235 mm
- Package depth
- 140 mm
- Package height
- 76 mm
- Package weight
- 500 g
Technical details
- Number of connectors
- 2
- Sustainable packaging
- No
- Take-back system
- No
- Packaging without single use plastic
- No
Logistics data
- Harmonized System (HS) code
- 85044095
- Customs product code (TARIC)
- 8504409590
- Total carbon footprint (kg of CO2e)
- 455.7645333333
- Country of origin
- India
