APCPower Distribution Units (PDUs)

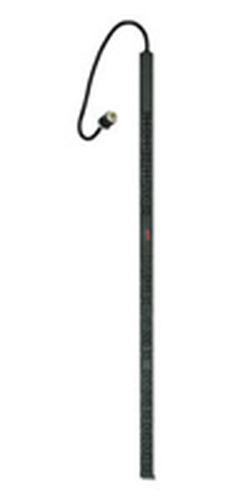

Basic Rack 5.7k VA PDU power distribution unit (PDU) 42 AC outlet(s) 0U Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
-Includes: Installation guide, Rack Mounting brackets, Toolless Mounting Kit.
-Multi-branch power input.
-Toolless mounting capability.
-Vertical mounting capability.
Specifications
Design
- PDU types
- Basic
- Rack capacity
- 0U
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 42 AC outlet(s)
- Power plug
- NEMA L21-20P
- AC outlet types
- C13 coupler, C19 coupler
- Output connections
- -(36) IEC 320 C13. -(6) IEC 320 C19.
Features
- Cable length
- 0.91 m
Power
- Nominal input voltage
- 208 V
- AC input frequency
- 50 - 60 Hz
- Nominal output voltage
- 208 V
- Load capacity
- 5700 VA
- Maximum input current per phase
- 20 A
- Maximum total current draw per phase
- 20 A
Certificates
- Compliance certificates
- RoHS
- Certification
- cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 56 mm
- Depth
- 44 mm
- Height
- 1778 mm
- Weight
- 5.45 kg
