APCPower Distribution Units (PDUs)

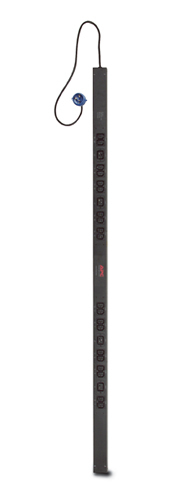

Basic Rack PDU power distribution unit (PDU) 24 AC outlet(s) 0U Black
- Basic 0U Black
- 24 AC outlet(s) C13 coupler, C19 coupler
- 3680 W
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
APC Basic Rack PDU, Input: 230V, Input Connections: IEC 309 16A 2P+E, Cord Length: 3 feet ( 0.91 meters ), Output: 230V, Output Connections: IEC 320 C13, IEC 320 C19.
Includes: Installation guide, Toolless Mounting Kit.
Specifications
Design
- PDU types
- Basic
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 24 AC outlet(s)
- AC outlet types
- C13 coupler, C19 coupler
- I/O ports
- IEC-309 16 A plug (20) IEC-320-C13 (4) IEC-320-C19
- Input connection type
- IEC 309 16A 2P+E
Features
- Cable length
- 0.91 m
Power
- Nominal input voltage
- 230 V
- Nominal output voltage
- 230 V
- Load capacity
- 3680 VA
- Maximum input current per phase
- 16 A
- Maximum power
- 3680 W
Certificates
- Certification
- CCC,CE,GOST,IRAM,VDE
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 55.9 mm
- Depth
- 43.9 mm
- Height
- 1619.3 mm
- Weight
- 4.86 kg
Packaging data
- Package weight
- 5.77 kg
- Package width
- 152 mm
- Package depth
- 127 mm
- Package height
- 2134 mm
