Drag to turn · 3 views
Netshelter Rack Automatic Transfer Switch, 2U, 30A, 200/208V, 2 L6-30 IN, 16 C13, 2 C19 OUT, 50/60Hz
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

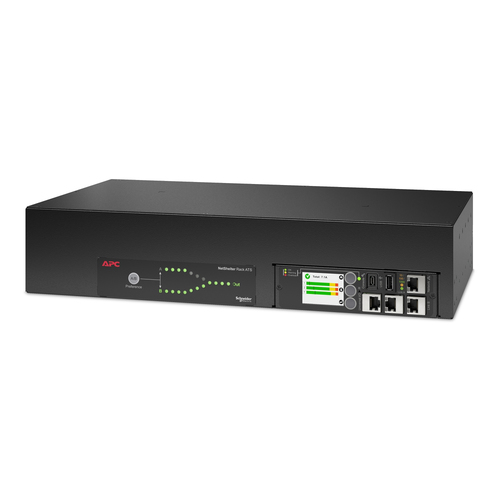

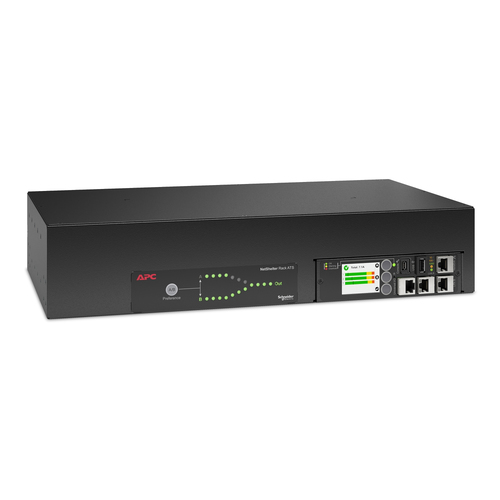

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4432A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4432A is single phase 2U Rack ATS with 30A rated current, 200V/208V rated voltage and 4992VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with inbuilt circuit breaker protection, 2 NEMA L6-30P inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Specifications
Power
- Input operation voltage (min)
- 180 V
- Input operation voltage (max)
- 220 V
- AC input frequency
- 50 - 60 Hz
- Input current
- 30 A
- Output operation voltage (min)
- 200 V
- Output operation voltage (max)
- 208 V
- Output current
- 30 A
Performance
- LED indicators
- Yes
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Product colour
- Black
- Certification
- REACH, RoHS, WEEE, PSE, TÜV-C, TÜV-NURTL
Ports & interfaces
- AC outlets quantity
- 18 AC outlet(s)
- AC outlet types
- C13 coupler, C19 coupler
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Technical details
- Doesn't contain
- Mercury
- Total carbon footprint (kg of CO2e)
- 754.59
- Warranty period
- 2 year(s)
- Compliance certificates
- REACH, RoHS, WEEE
Weight & dimensions
- Width
- 432 mm
- Depth
- 236 mm
- Height
- 88 mm
- Weight
- 6.58 kg
Packaging data
- Package width
- 584 mm
- Package depth
- 356 mm
- Package height
- 210 mm
- Package weight
- 9.07 kg
